Item Description

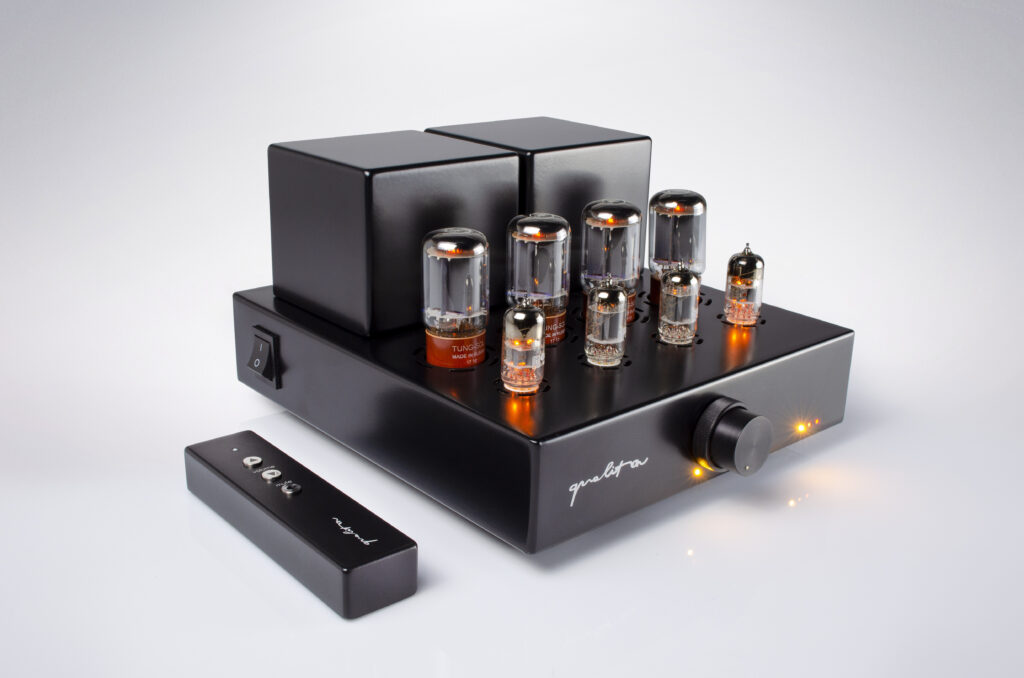

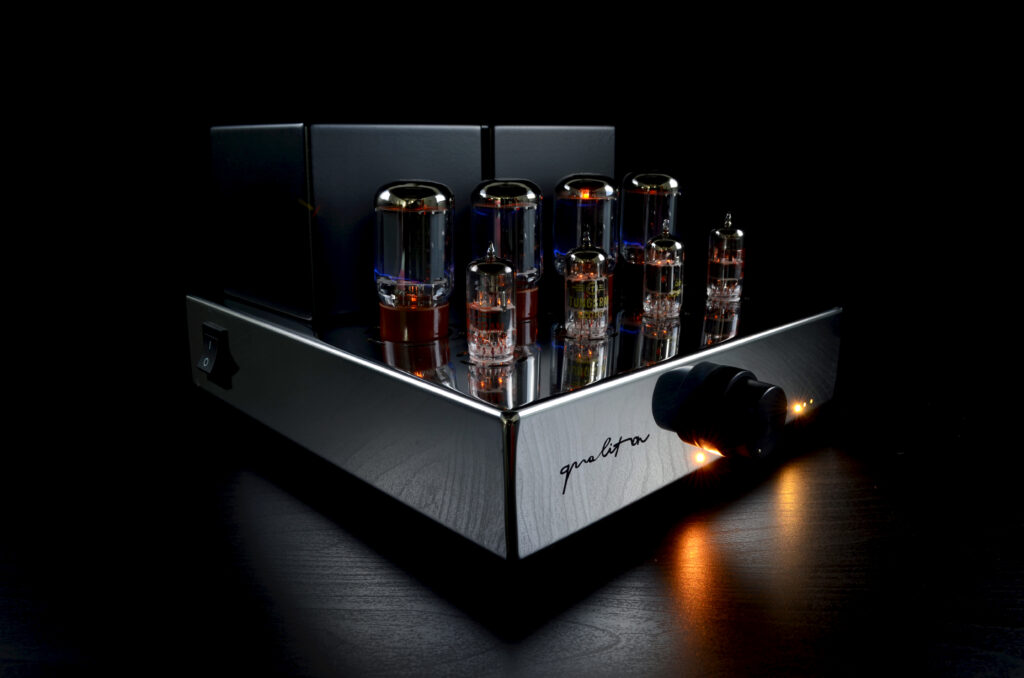

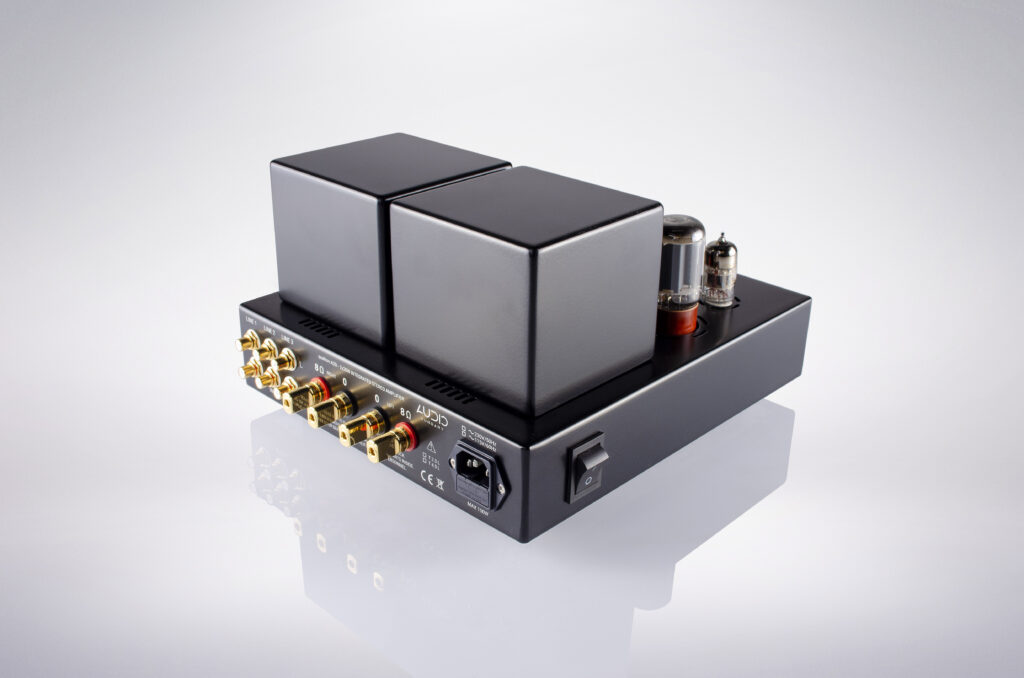

The outputs at the rear panel can be connected to 8 Ω nominal impedance speakers. The design of the output transformers of the power amp enable to connect the amp with 4 Ω nominal impedance speakers as well. This entails a slight deviation from the parameters indicated in the technical data sheet. At the front panel, the volume control potentiometer and the input selector rotary switch are connected to the same shaft. Indicators informing about the actual state of the amp are located at the front panel too. It can be monitored whether the appliance is ready for operation (if so, the LED next to the volume control turns from red to white light).

The user is also informed about the actual position of the input selector unit. The amp is made of solid, 1.5 mm thick, polished stainless steel sheet.

Specification

Rated output power: 2 x 20 W, stereo
Total harmonic distortion: < 0.3% (f = 1 kHz, rated output power)
Frequency response: 25 Hz – 100 kHz (-3 dB, rated output power)
Input sensitivity: 230 mV, unbalanced input
Number of input ports: 3 unbalanced input per channel
Number of output ports: 1 output terminal pair per channel
Gain: +34.8 dB
Input impedance: 10 kOhm
Nominal load impedance: 8 Ohm
Output polarity: non-inverting
Signal-to-noise ratio: > 90 dB; output noise less, than 1 mV
Power requirements: 150 W
Tubes required: 4 x 5881; 2 x E88CC/6922; 2 x ECC83
Weight: 16 kg
Dimensions: 27 x 18 x 30 cm
