Item Description

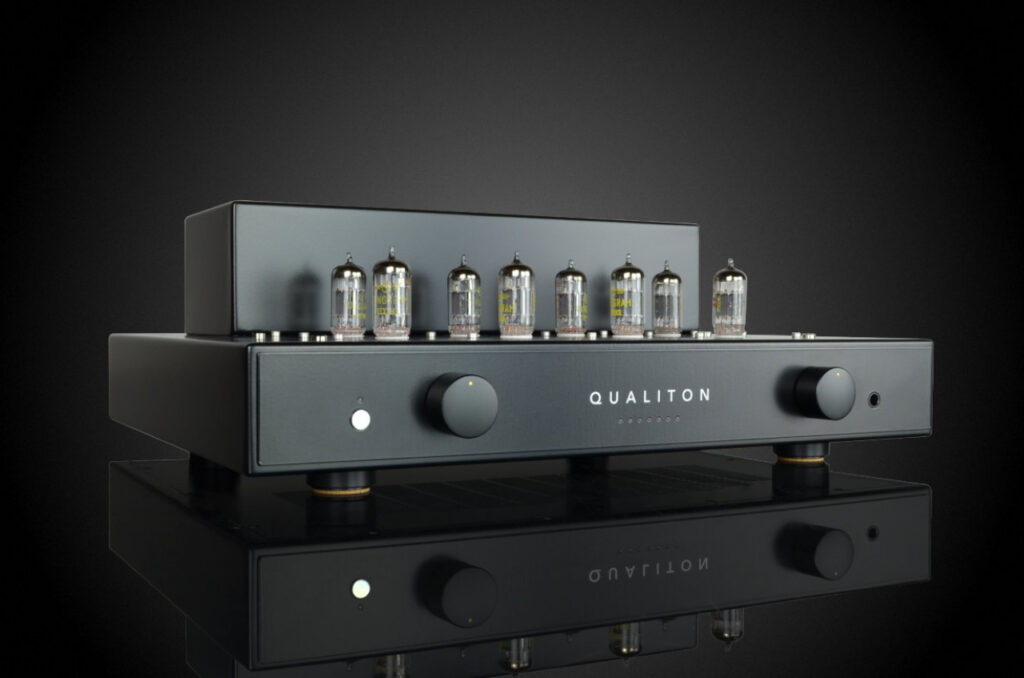

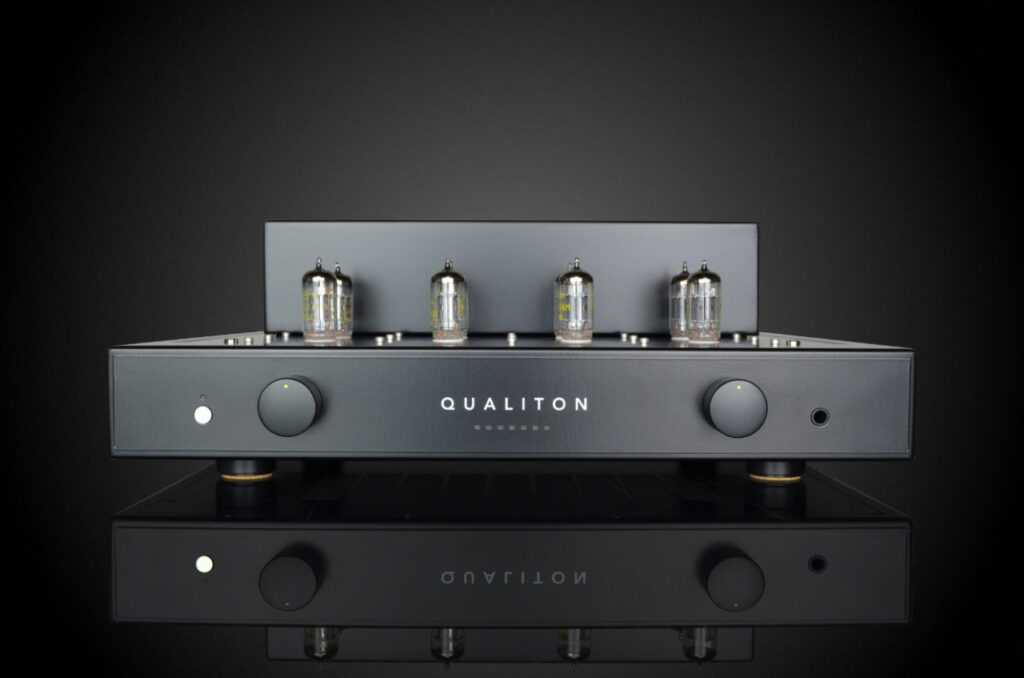

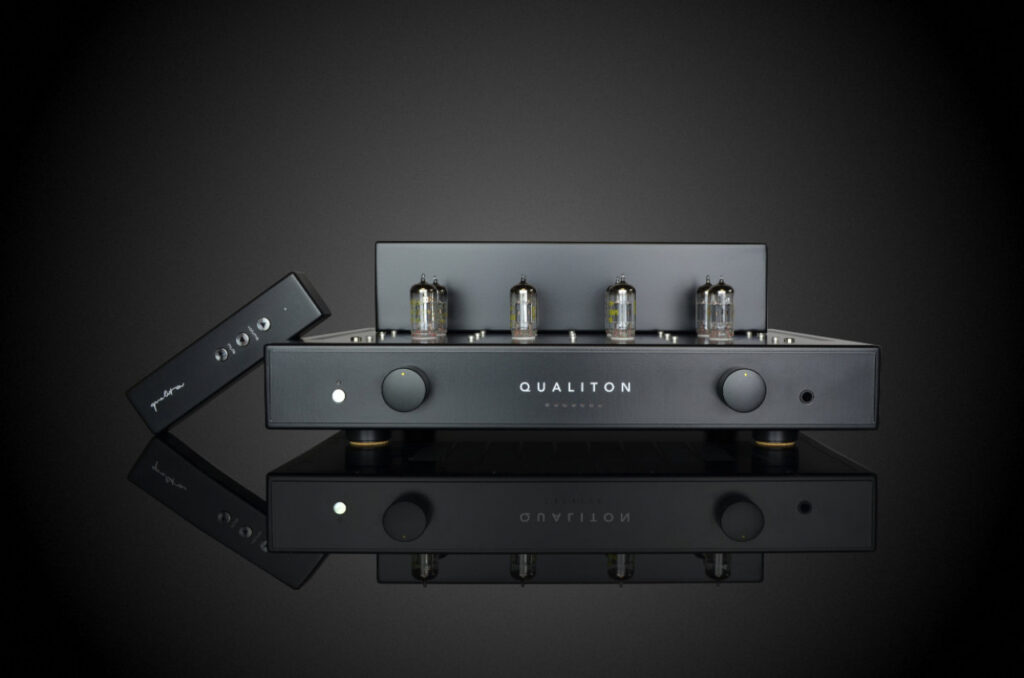

Audio Hungary – C200 Preamplifier, the perfect match for P200 Power Amplifier.

Specifications

Nominal output level – Line: 4 V
Input sensitivity – Line: 1 V, to nominal output level
Input sensitivity – Phono: 5,7 mV, to nominal output level

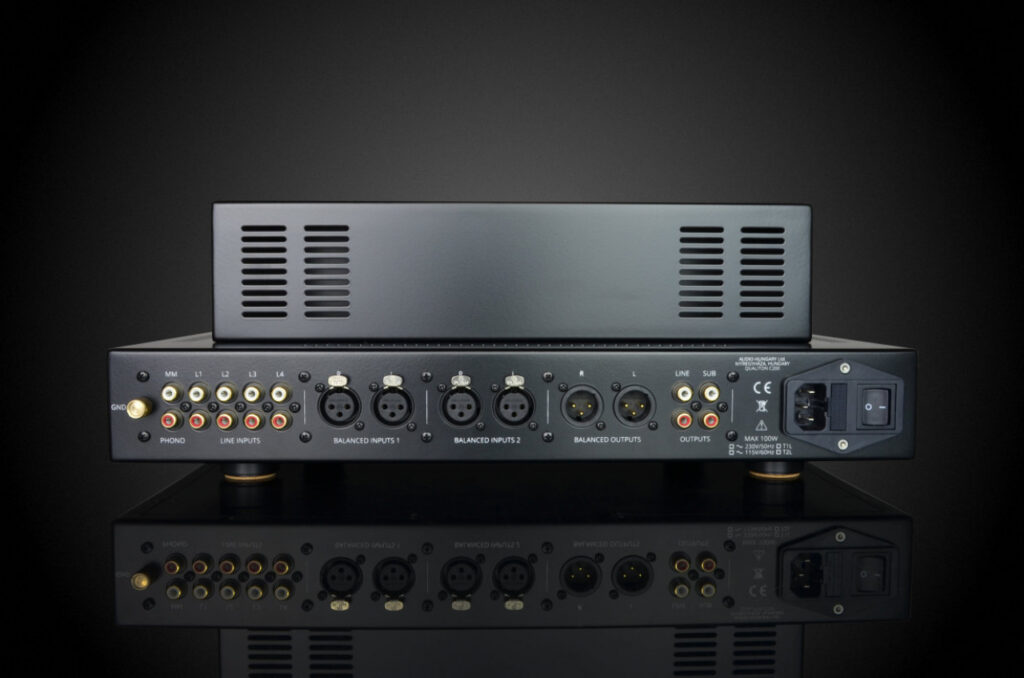

Number of input ports per channel: 4 unbalanced line level inputs (LINE 1-4); 2 balanced line level inputs (BALANCED INPUTS 1-2); 1 PHONO level input (PHONO MM)
Number of output ports per channel: 2 unbalanced line level outputs (LINE; SUB); 1 balanced line level output (BALANCED OUTPUTS); 1 headphone output per channel
Max. input signal – Line: 10 V
Max. input signal – Phono: 70 mV
Gain – Line: +12 dB
Gain – Phono: +57 dB
Total harmonic distortion – Line: < 0.05%, (f = 1 kHz)
Total harmonic distortion – Phono: < 0.1%, (f = 1 kHz)
Frequency response – Line: 4 Hz – 300 kHz, (-1 dB)
Frequency response – Phono: 20 Hz – 20 kHz, (-0.5 dB)
Input impedance – Line: 10 kOhm
Input impedance – Phono: 47 kOhm
Signal-to-noise ratio – Line: > 100 dB
Signal-to-noise ratio – Phono: > 70 dB

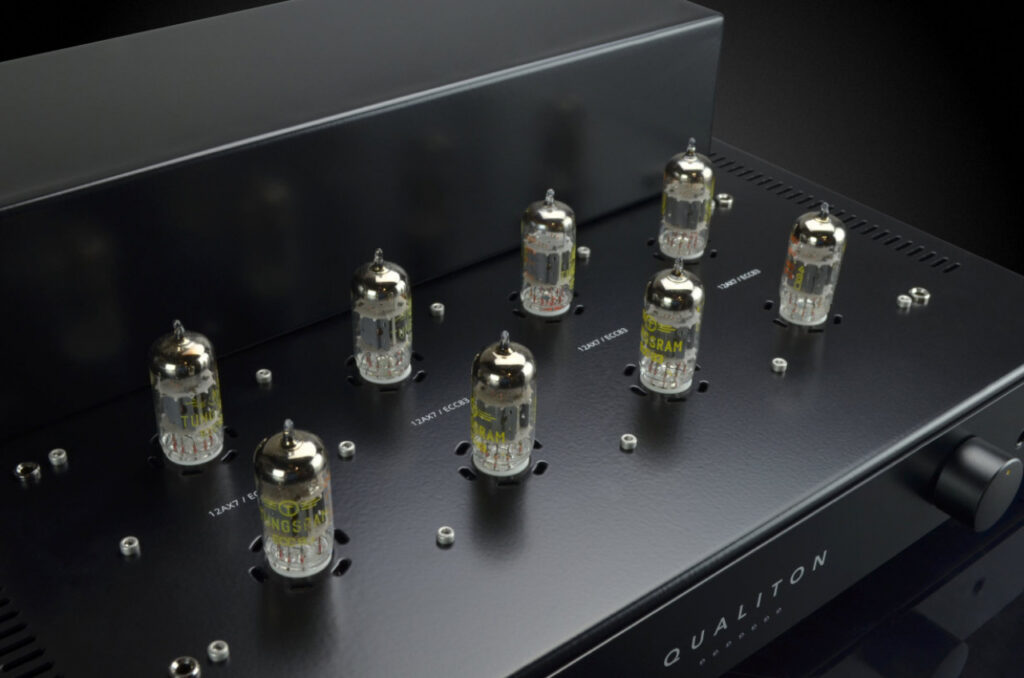

Tubes required: 8 x ECC83/12AX7
Weight: 10.4 kg
Dimensions: 43 x 40 x 16 cm
