Item Description

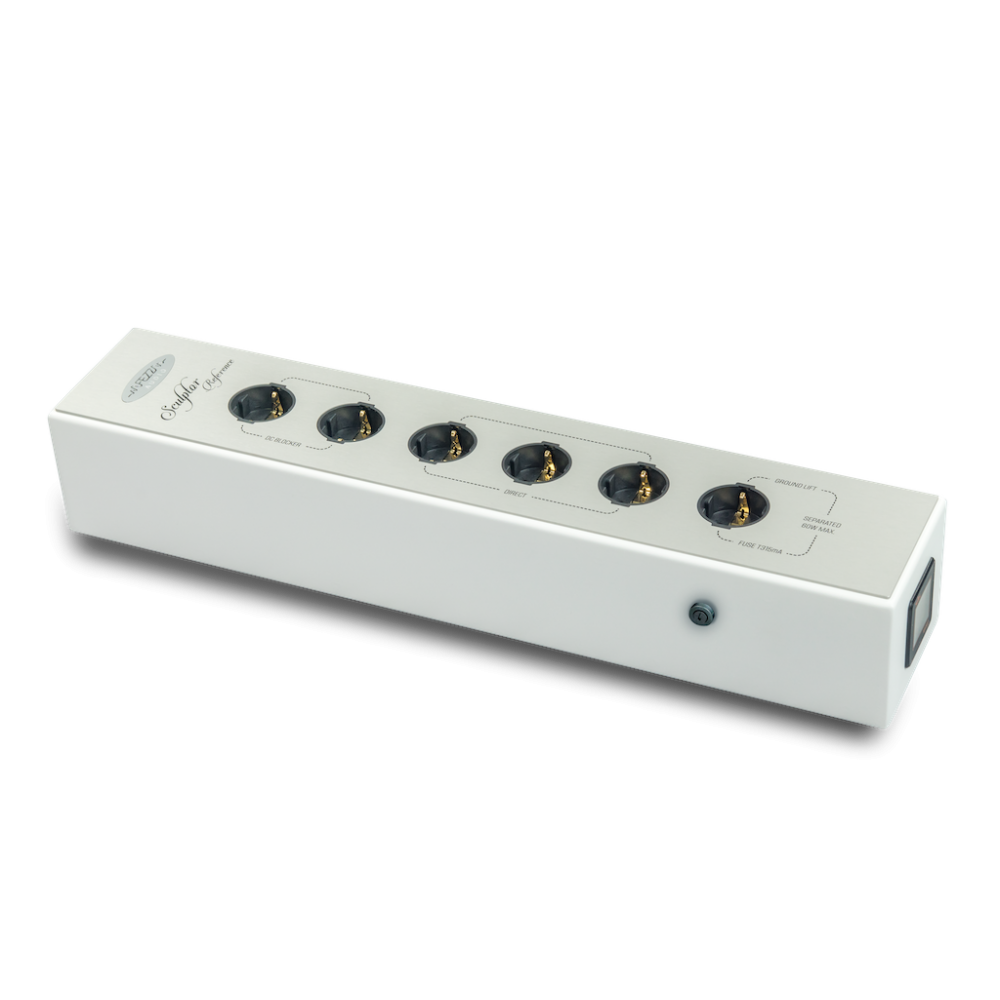

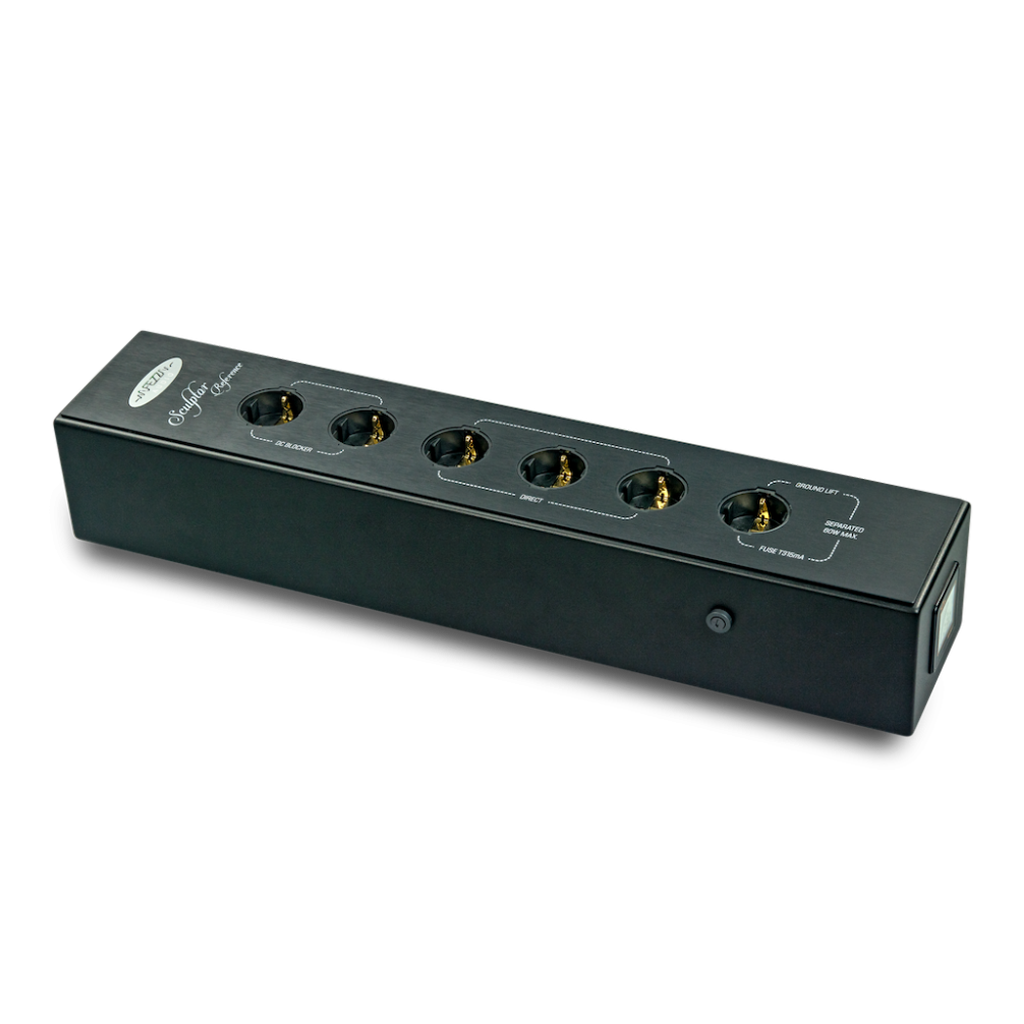

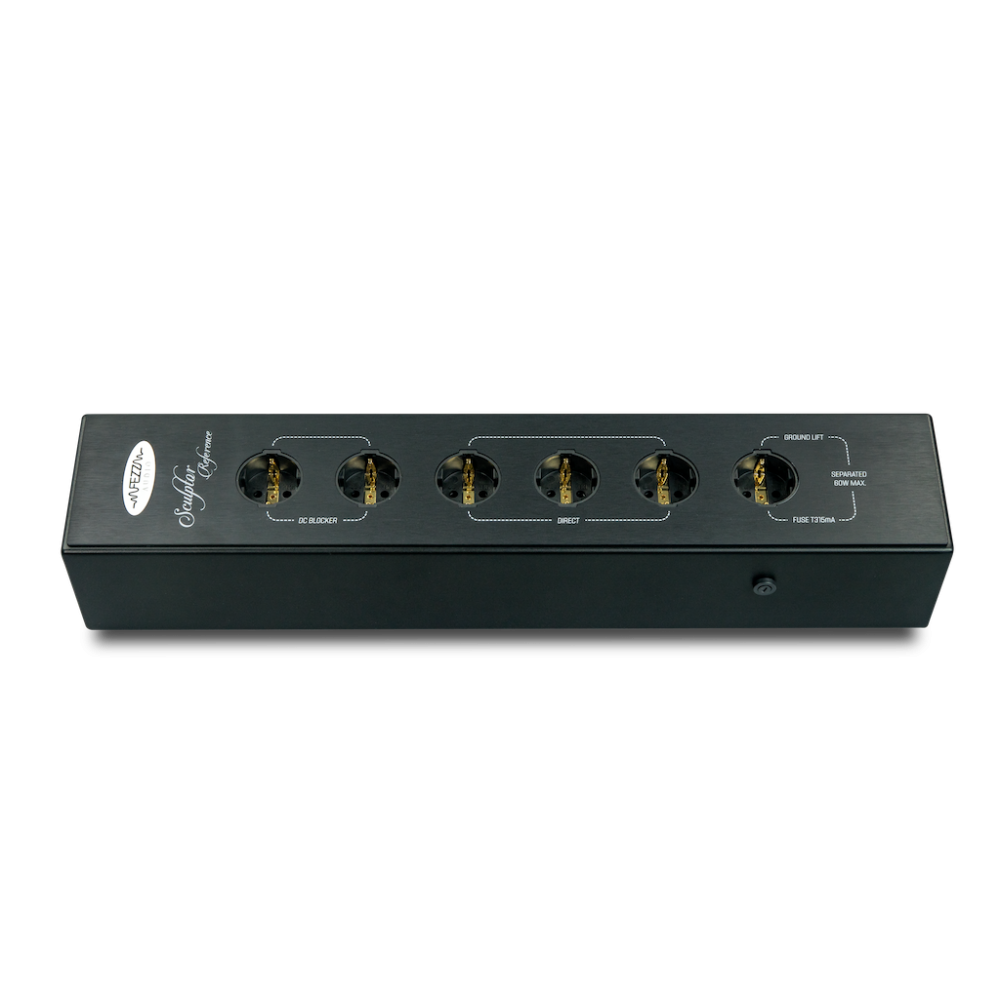

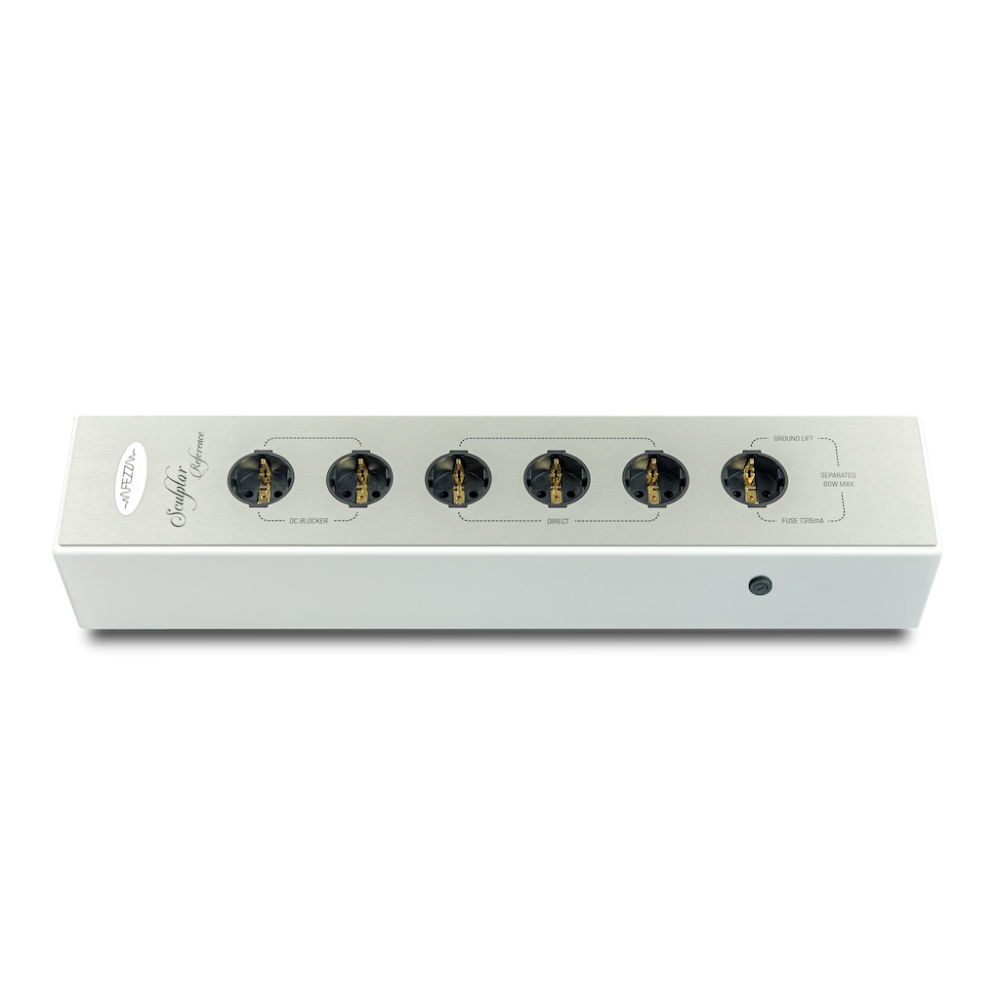

Sculptor Reference is an uncompromising power solution for hi-fi and high-end audio equipment. A solid, metal chassis, 4 anti-vibration feet made of solid aluminum and anti-vibration mat inside reduces negative impact ot vibrations tor audio equipment. Gold-plated schuko Furutech sockets provides an convenient phasing to connected devices.

2 × DC BLOCKER sockets
DC Blocker is a device whose task is to eliminate the unwanted DC component of the 230V supply voltage. The DC component is caused mainly by switched-mode power supplies and all kinds to converters. The DC constant has a negative effect on transformers in audio devices – it causes the core to be over-magnetised (saturated), which results in a significant increase in the volume of their operation (so-called buzzing), heating of the transformer and deformation of the sine on the output. All these negative effects of the presence of a DC component may disrupt work and parameters of power ambitiers and other audio devices. A secondary effect is a so a significant increase in the power consumption of audio devices due to excessive heating of the transformer inside. A frequently observed negative effect of the DC component is also uneven operation of the turntable motors, which translate the own vibrations to the platter.
Suggested use: integrated amplifiers, receivers, power amplifiers, turntables.

3 × HIGH-CURRENT direct sockets
A set of three, star-connected, sockets directly powered from mains.Wired by multi strand copper, 4mm? cross-section wire.
Suggested use: power amplifiers, integrated amplifiers

1 x SEPARATED 60W socket
Symmetrised voltage and separated from the mains socket, with the GROUND LIFT option. Breaking the ground loop may help with hum reduction.
Suggested use: phono stages, music streamers, preamplifiers, cD players, DACS

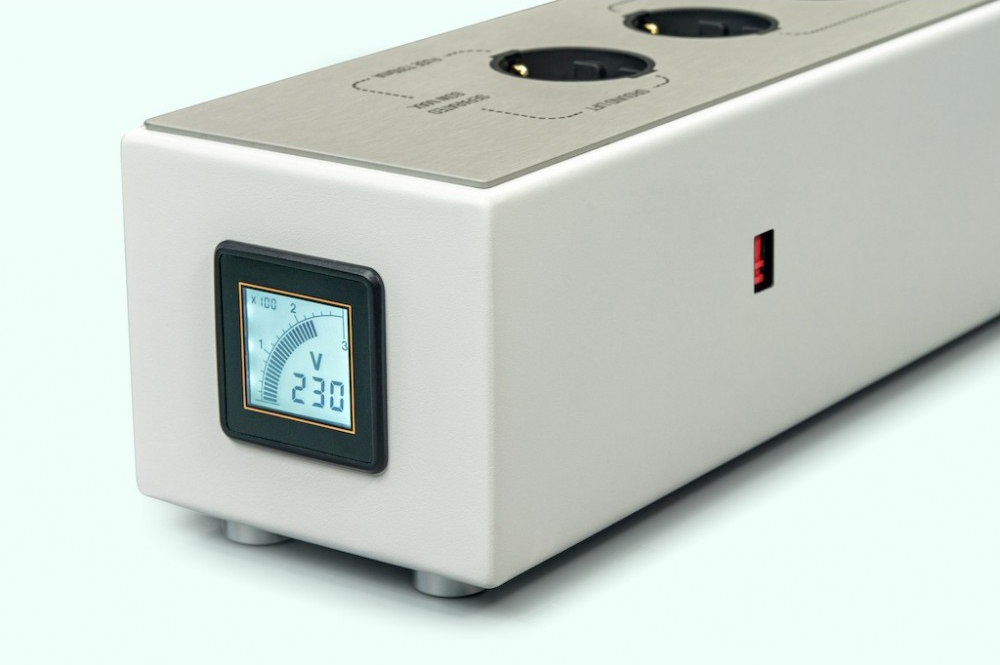

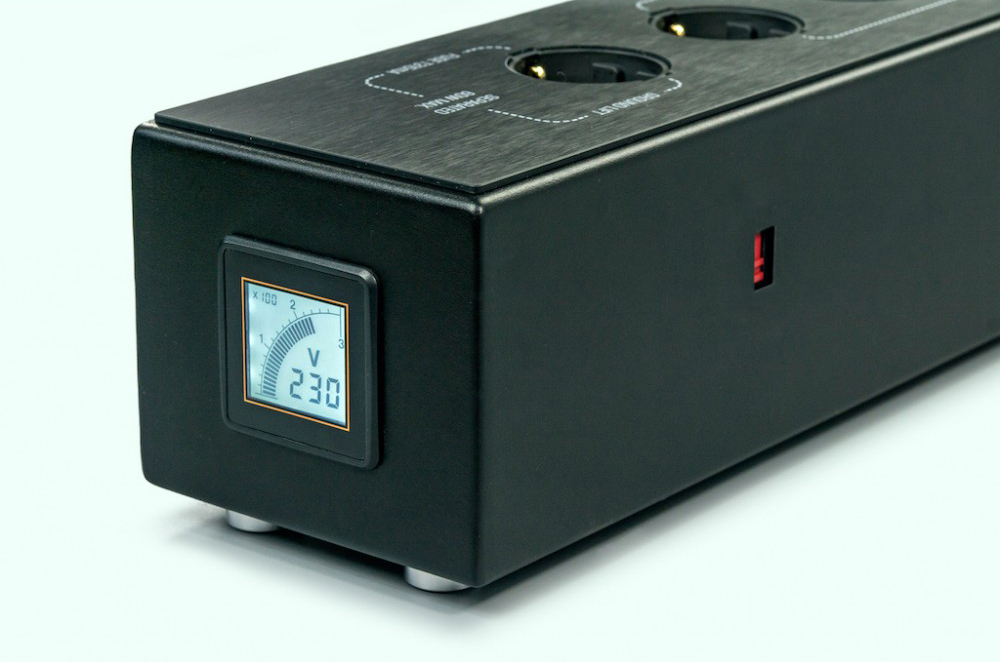

The Sculptor Reference is equipped with a precise (0,5% accuracy), backlit LCD voltmeter with an analog bar graph.

Specifications

Type: Power strip
Model: Sculptor Reference
Supply voltage: 230V
Power socket: Furutech IEC60320
Output sockets: Furutech Schuko
Number of sockets: 6
Maximum load: 3,5 kW
Maximum continuous current: 16A
Dimensions: 570x115x110mm
Available colours: Black, White
Weight: 7,5 kg
Recommended power cord: Fezz Audio Auriga Reference – empowered by Ziggy
