Bryston integrated amplifiers give no ground to their separate counterparts. The new Bi-200 is literally constructed from the Bryston BP-19 Preamplifier and 3B amplifier into a single chas- sis offering the best of both products without occupying extra space and costly interconnects.
Bryston
Bi-200 Integrated Amplifier
Bryston integrated amplifiers give no ground to their separate counterparts. The new Bi-200 is literally constructed from the Bryston BP-19 Preamplifier and 3B amplifier into a single chas- sis offering the best of both products without occupying extra space and costly interconnects.
€ 9.314,5
Available on backorder
Item Description
High performance and transparency is always the Bryston goal, and an integrated amplifier doesn’t have to compromise performance for convenience. And it doesn’t take up a lot of space. It’s the same size as the 3B Cubed amp, which is fairly compact. So, if you aren’t obsessed with building your ultimate dream system with the Bryston separates, keep your stereo modest in size and discrete with the Bi-200.
Preamp Section from the Bryston BP-19
The preamp circuitry comes from the best possible source, taken directly from the acclaimed Bryston BP-19, which leverages years of R&D and many design innovations that were achieved during the development of the multi-award-winning BR-20 preamplifier.
The BP-19 circuitry reproduces music effortlessly, constructed using only the finest hand-selected premium components including an oversized toroidal power transformer. The optimized discrete operational amplifier delivers a staggeringly low THD+N measurement at or below 0.0006%.
Amplification Section from the Bryston 3B Cubed
The amplification section from the Bryston 3B Cubed is a two-channel (stereo) design for a wide range of audio/video systems which call for medium to high amounts of power, but wish to avoid sacrificing sonic accuracy and long-term reliability. It is rated to deliver 200 watts per channel into 8 ohms and 300 watts into 4 ohms.
Just like the preamp section, the amplification circuitry is a dual-mono design. Two fully independent amplifiers are housed in the chassis. With totally separate power supplies and transformers, one channel under heavy load cannot restrict the performance of the other.
Features
- Full Balanced Discrete Circuit Path
- Analog Volume … Digitally Controlled
- Connect up to 6 analog sources
- Optional low distortion MM/MC Phono module
- Dual-mono amplifier produces 200 watts into 8 ohms
- 300 watts per channel into 4 ohms.
- Channel balance control
- Fully convection cooled means no noisy fans
- Independent buffered headphone output
- Machined aluminum enclosure and dress panel
- 2-way RS232 for automation systems

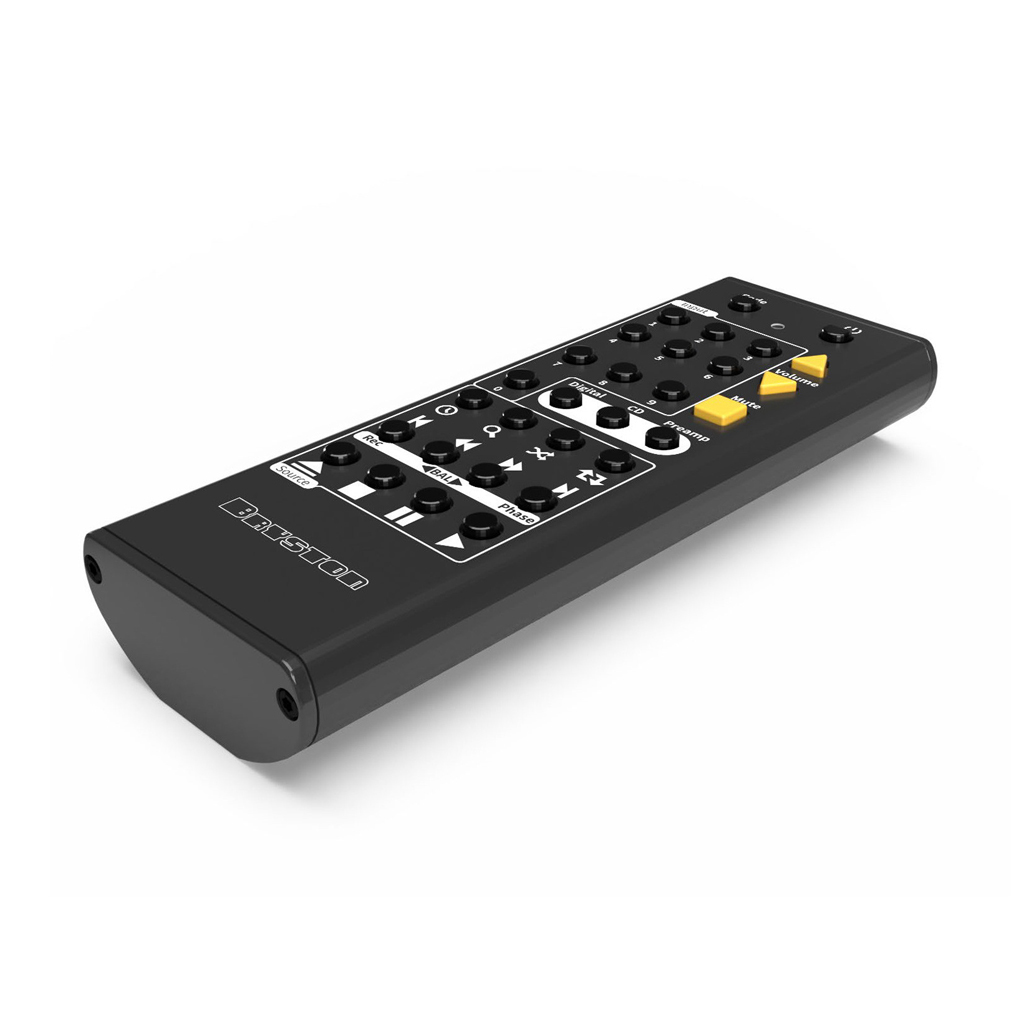

- Compatible with BR-4 remote control
- Soft-Start microprocessor won’t trip circuit breakers
- DC trigger out
- Legendary Bryston 20 Year Warranty on Analog
- Ethernet/USB/RS232 status control
Options
- Standard Silver or Black Faceplates Available in 17 or 19 Inch
- Pro 19 Inch Rackmount
- Colour Faceplates Available
- Phono Bi-200P & Bi-200MC
- Moving Coil Transformer Phono
- Module (20 or 26 dB)
Specifications
Frequency Response: 20Hz – 20kHz: ± 0.05dB
Signal To Noise: Weighted Filter: 22Hz-22kHz, decibels below rated output
IMD: ≤0.0005%
THD+N: 20Hz-20kHz @ 200W, 8Ω
Weight: 37 lbs | 16.8 kg
Dimensions: Inches: 17 or 19 W x 4.6 H x 13 D | Cm: 43 or 48.3 W x 11.6 H x 33 D
Power Consumption (120V/60Hz): Standby <0.5w idle ≤60w
