Item Description

Specifications

Rated output power: 2 x 75 W, stereo
Total harmonic distortion: < 0,1% (f = 1 kHz, rated output)
Frequency response: 25 Hz to 70 kHz (-3 dB, rated output)
Input sensitivity, Balanced Stereo IN: 920 mV, to rated output
Input sensitivity, Unbalanced Stereo IN: 920 mV, to rated output

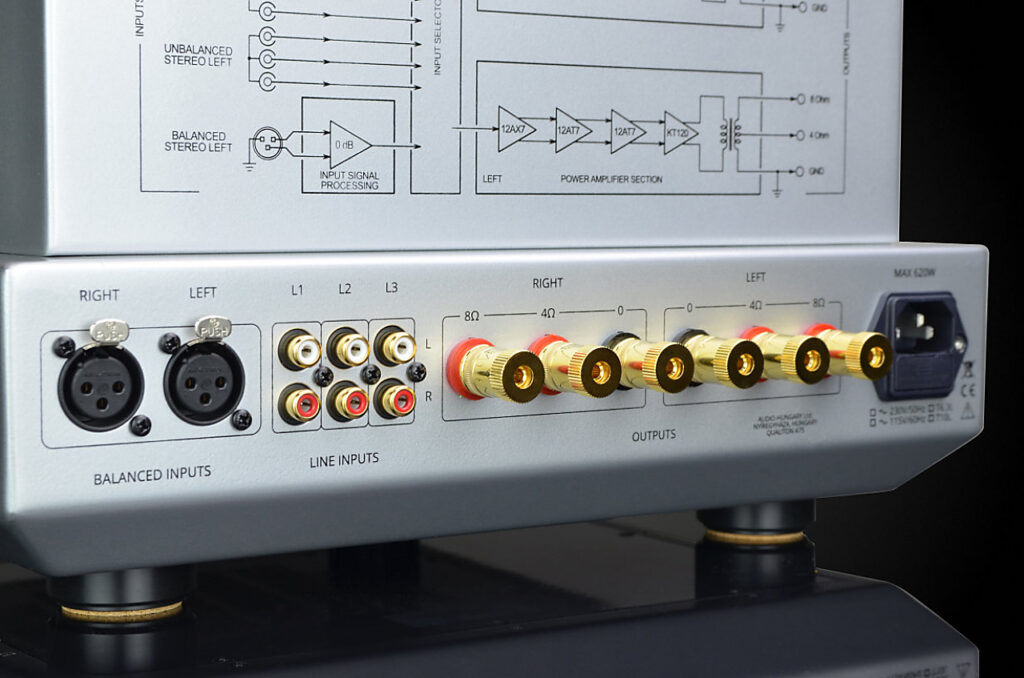

Number of input ports / channel: 3 unbalanced Stereo IN, 1 balanced Stereo IN
Number of output ports / channel: 2 unbalanced Power OUT
Gain: +28.5 dB (RL = 8 Ohm)
Input impedance, Balanced Stereo IN: 40 kOhm
Input impedance, Unbalanced Stereo IN: 10 kOhm
Load impedance: 4 Ohm and 8 Ohm
Signal-to-noise ratio: > 100 dB (RL = 8 Ohm, rated output)
Power requirements: 620 W
Tubes required: 4 x KT120 (KT150 or KT170 optionally); 4 x 12AT7; 2 x 12AX7
Weight: 21 kg
Dimensions: 35 x 22 x 42 cm
