Item Description

Specifications

Rated output power: 2 x 35 W, stereo
Total harmonic distortion: < 0,3% (f = 1 kHz, rated output)
Frequency response: 22 Hz to 80 kHz (-3 dB, rated output)
Input sensitivity, Balanced Stereo IN: 500 mV, to rated output
Input sensitivity, Unbalanced Stereo IN: 500 mV, to rated output

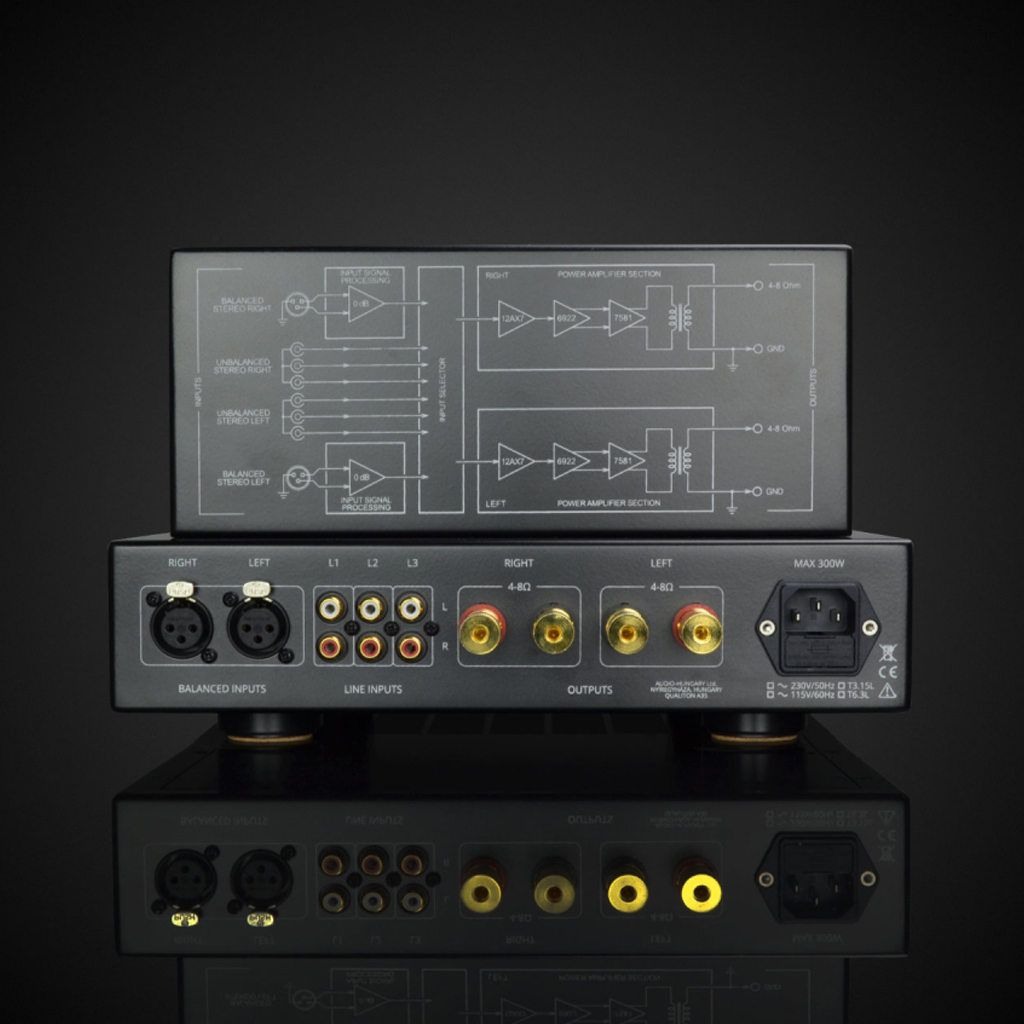

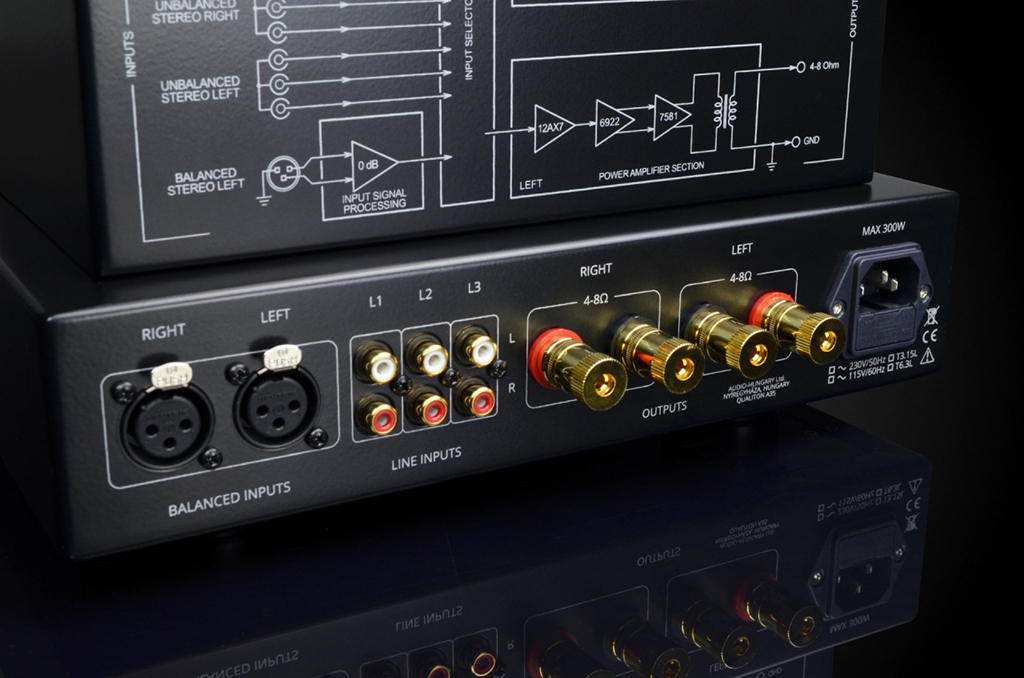

Number of input ports / channel: 3 unbalanced Stereo IN, 1 balanced Stereo IN
Number of output ports / channel: 1 unbalanced Power OUT
Gain: +30 dB (RL = 8 Ohm)
Input impedance, Balanced Stereo IN: 40 kOhm
Input impedance, Unbalanced Stereo IN: 10 kOhm
Load impedance: 4 Ohm and 8 Ohm
Signal-to-noise ratio: > 98 dB (RL = 8 Ohm, rated output)
Power requirements: 300 W

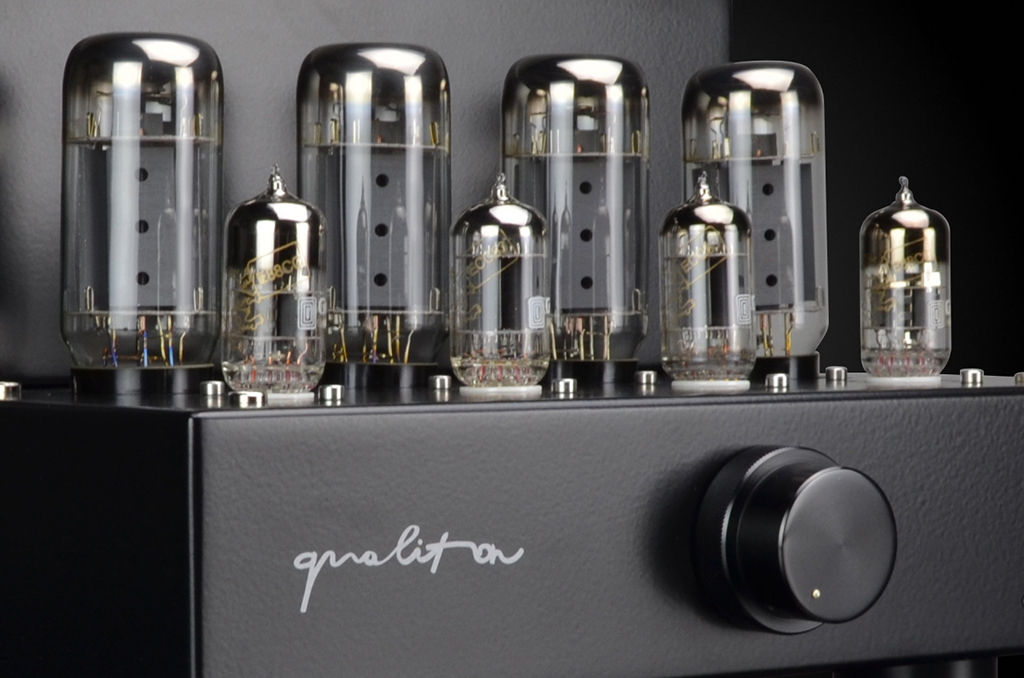

Tubes required: 4 x 7581 / 2 x 12AX7 / 2 x 6922
Weight: 15 kg
Dimensions: 29 x 37 x 19 cm
