The wait is over after nine years of Te Kaitora bliss the new Te Kaitora Rua invites you to embark and once again experience the unique.

Titanium head with most advanced magnetic circuit design.

Dynavector

Te Kaitora Rua Cartridge

Cat No: DV-TEK

The wait is over after nine years of Te Kaitora bliss the new Te Kaitora Rua invites you to embark and once again experience the unique.

Titanium head with most advanced magnetic circuit design.

 2.782,3

In stock (ready to ship)

Available on backorder

Item Description

The original Te Kaitora cartridge was the result of collaboration between Dynavector Japan and Dynavector New Zealand. The Te Kaitora allowed analogue enthusiasts to embark on a voyage of discovery to the outer limits of vinyl reproduction.

The improved Te Kaitora Rua continues the journey by incorporating many of the newest features of its Dynavector stable-mates, the XV-1s and XX-2. The Te Kaitora Rua has even managed to improve on the original’s silk-like treble and openness.

Note: Te Kaitora means “The Discoverer” in the language of the NZ Maori people, Rua, is “the second version”.

Improvements

The wire for the coil has been changed to the PCOCC copper wire from the silver wire. It sounds a much smoother and has a much better musical performance.

A titanium headpiece for maximum rigidity along with a miniature stainless steel bolt coupling the front and rear yokes to the magnetic circuit assembly.

A 6mm long boron cantilever with the Pathfinder (PF) line contact stylus as used with both Dynavector XV-1s and XX-2.

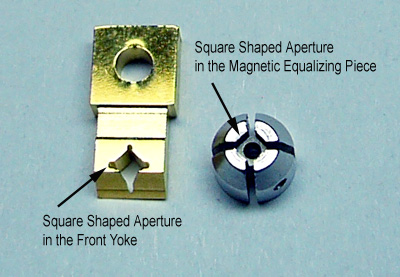

The ingenious square shaped armature and matching square shaped aperture in the front yoke providing much improved linearity in the magnetic flux distribution.

Alnico magnets are used for high magnetic flux density.

Specifications

Type: low output moving coil cartridge with flux damper and alnico magnet
Output Voltage: 0.26mV (at 1KHz, 5cm/sec.)
Channel Separation: 30 dB (at 1KHz)
Channel balance: 1.0 dB (at 1KHz)
Frequency response: 20 – 20,000Hz (± 1dB)
Compliance: 10 mm/N
Tracking force: 1.8 – 2.2 g
Impedance: 6 ohms
Recommended load impedance: > 30 ohms
Cantilever: 6mm length solid boron
Stylus tip: PF Line contact shape, stylus radius: 7 x 30 micron
Weight: 9.8 g
