Item Description

Built Around KT88 Tubes:

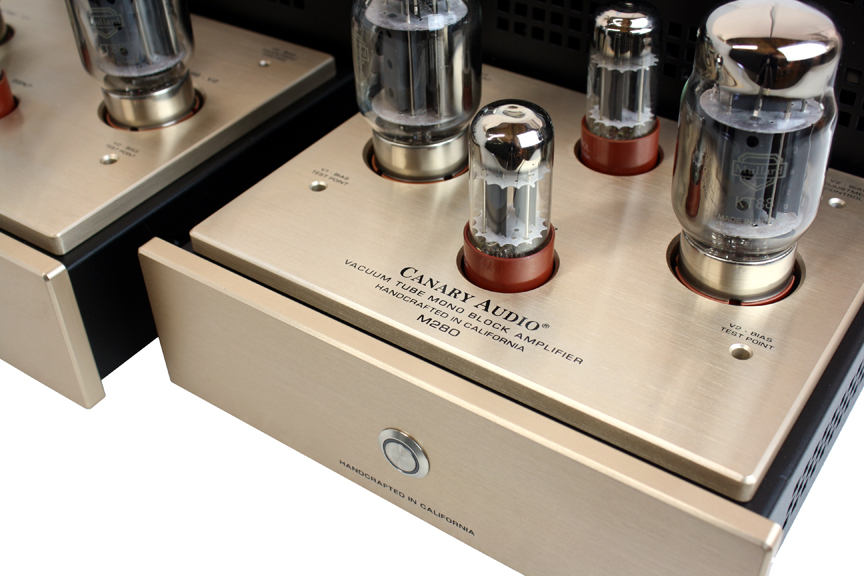

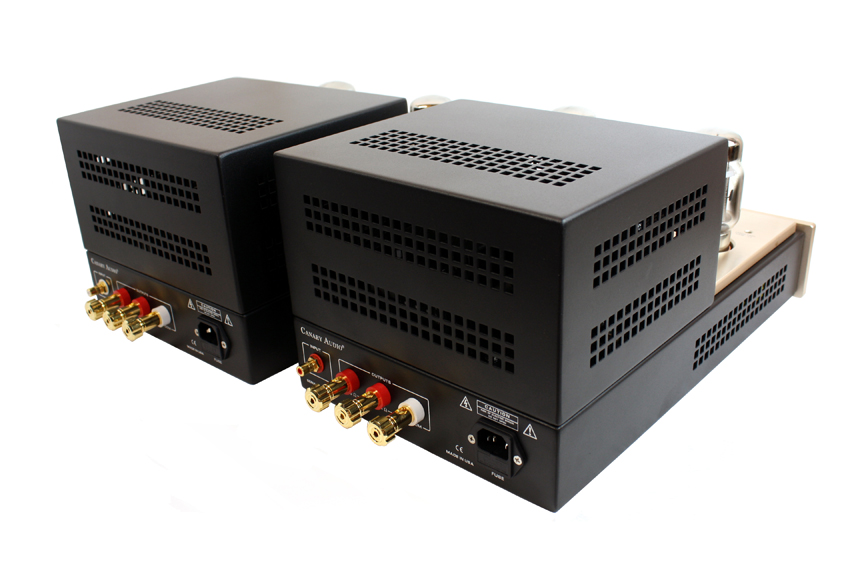

The M280 is a class A ultra-linear monoblock power amplifiers with the use of two matched KT88 tubes per channel. It is the monoblock version of our M50 KT88 power amplifier. The M280 is capable to deliver 50 watts of power per channel. To get the most out of the design, we used the best caps and resistors we could ever find. The custom wound output and power transformers were specially designed to extend the bass and highs. Just as important, the military grade epoxy circuit boards are designed to minimise component interaction. You will also see the care we took by looking inside. No rat’s nest here, neatly laid out Teflon wires, carefully thought through grounding paths, all done in the best traditions of American craftsmanship.

Specifications

Rated Power Output: 50 Watts RMS
Input Sensitivity: 1.2 Volts for full output
Input Impedance: 100,000 Ohms
Frequency Response: +/- 1dB from 10 Hz to 85,000 Hz
Total Harmonic Distortion: < 0.4%
Signal-to-Noise Ratio: -95 dB below 1 Watt
Damping Factor: 14
Power Consumption: 220 Watts (true RMS)
Output Impedance: 4, 8 Ohm
Tube Complement (per monoblock): 2 x KT88, 2 x 6SN7
Dimensions (per monoblock): 10″ W x 17.5″ D x 8″ H
Net Weight (per monoblock): 35 lbs. / 16 kg
Warranty: 2 Years Parts and Labor
