Item Description

It was time to upgrade the Gran Gioia to the MK 3 version with our own developed 16″ woofer. The result reflects the additional qualities we expected. Our expectations were completely fulfilled and… surpassed.

We make 2 versions of the Gran Gioia MK 3, one version with titanium compression driver for the mid high range horn and one version with a more advanced beryllium based compression driver. The more advanced compression driver permits to have a lower cross over frequency and therefore the field of application of the woofer takes advantage of it as well. The further difference between the two versions is the sliding system of the top horn.

The Gran Gioia MK 3, even closer to reality than before.

Specifications

• High efficiency
• 2-Ways loudspeaker

Cabinet

• Front midrange horn
• New Phase Plug technology
• Floor ported Bass-Reflex
• Harmonic construction

Components

• 1.4” Compression Driver with Titan membrane
• 38cm (16″) Paper Woofer
• Gold plated tellurium copper terminals

Features

• 2-1dB-steps level adjustment for the horn
• Bi-wiring- / Bi-amping -terminals

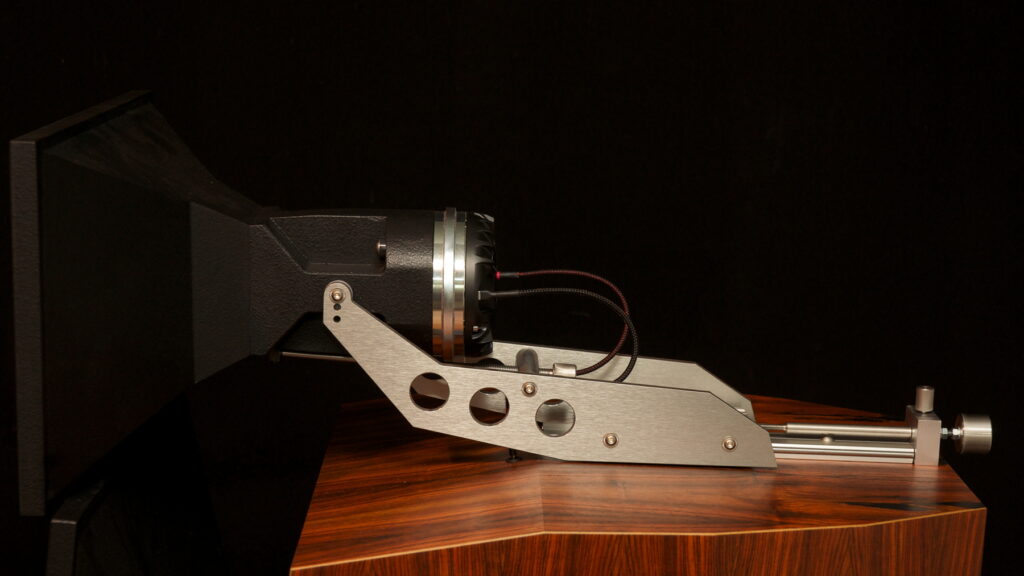

• Micrometrical regulation for Time alignment
• Switchable impedance linearisation for the crossover frequency
• Tube Friendly
• 10 years Warranty

Technical Data

Material: Birch plywood
Horn Material: HDF-Complex
Thickness: 19mm / 3/4″
Internal Bracing: Structural bracing interaction
Frequency range: 35Hz – 20kHz ± 2dB

Woofer: 380mm / 15″
Material: Paper
Bass Cabinet: Horn / Bass Reflex
Porting: Floor
Horn load: Front
Cross over frequency: 850 Hz

Midhigh: Compression driver
Horn Throat: 1,4″
Membrane dimensions: 75mm / 3″
Material: Titanium

Max power input (RMS): 150 W RMS
Efficiency: 100 dB
Impedance: 8 Ohm
Impedance linearisation: Yes
Terminal: Bi-Amping
Material: Gold plated tellurium copper

Feet: Adjustable Spikes
Dimensions: 1335 x 550 x 840 mm
Weight: 100 kg
Loudspeakers per carton: 1
Gross weight: 140 kg
